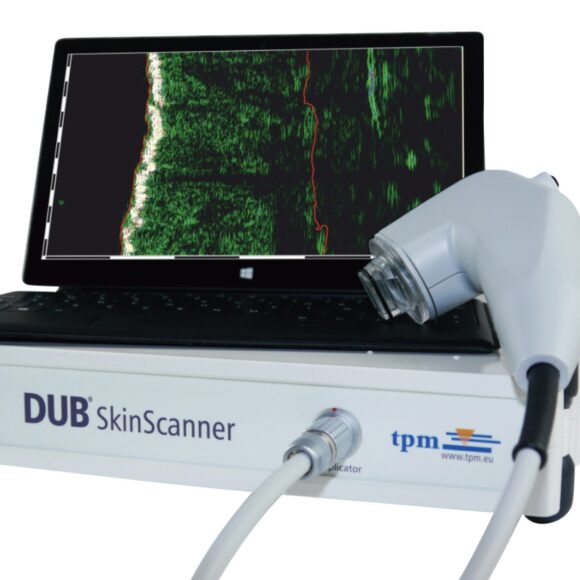

DUB SkinScanner
Brand : taberna pro medicum, Germany
The DUB SkinScanner is a specialized high-frequency ultrasound system designed for non-invasive skin imaging in dermatology, cosmetic science, and clinical research. Its portable, USB-connected platform and sophisticated software provide accurate measurement and real-time visualization of epidermal and dermal structures. Approved by CE and FDA 510K, it supports advanced workflows and reliable diagnostic assessments.
Description:
The DUB SkinScanner is a compact, USB-powered diagnostic ultrasound device optimized for dermatological evaluation, aesthetic applications, and research. It operates with interchangeable high-frequency linear probes enabling axial resolution as fine as 42 µm (at 38 MHz) and a maximum imaging depth of 16 mm. Ultra-precise scanning covers a linear width of 12.8 mm. Clinically validated for skin thickness, density, lesion mapping, and monitoring treatment response, this system supports multiple viewing modes (B‑Scan, A‑Scan, RF Mode, Sum-A, ScanLoop).
With CE marking and 510(k) clearance, the DUB SkinScanner is adaptable to Windows (via USB 2.0/3.0), making it a versatile tool in outpatient clinics, aesthetic centers, and clinical trials. Its blend of portability, precision, and usability positions it as a top-tier device in the high-frequency skin imaging space.
| Parameter | Specification |
|---|---|
|
Axial Resolution |
42 µm at 38 MHz |
|
Maximum Imaging Depth |
16 mm |
|
Scan Width |
12.8 mm linear (33 µm steps) |
|
Probe Frequencies |
22–30 MHz standard; 33–38 MHz for high resolution |
|
Interface & Approval |
USB 2.0 / 3.0; CE & FDA 510(k) |
|
Viewing Modes |
B-Scan, A-Scan, RF Mode, Sum-A, ScanLoop up to 2000 loops |
|
Automated Measurements |
Skin/epidermal thickness, density |
|
Software Compatibility |
Windows (USB-connected) |
|
Portable & Lightweight |
Compact USB unit for clinic and mobile use |
Features:
- Ultra-high resolution (up to 42 µm axial at 38 MHz).
- Maximum imaging depth: 16 mm.
- Linear scan width: 12.8 mm, 33 µm steps.
- Interchangeable 22–40 MHz probes (including 33–38 MHz for 42 µm resolution).
- Portable USB interface with CE & FDA 510(k) approvals.
- Multi-mode imaging: B-Scan, A-Scan, RF-Mode, Sum-A, ScanLoop.
- Compatible with Windows-based DUB software.
