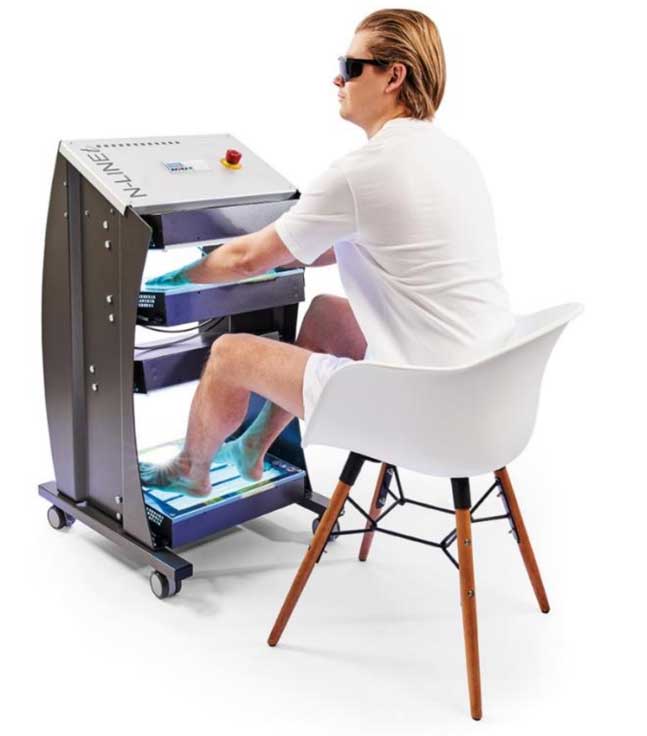

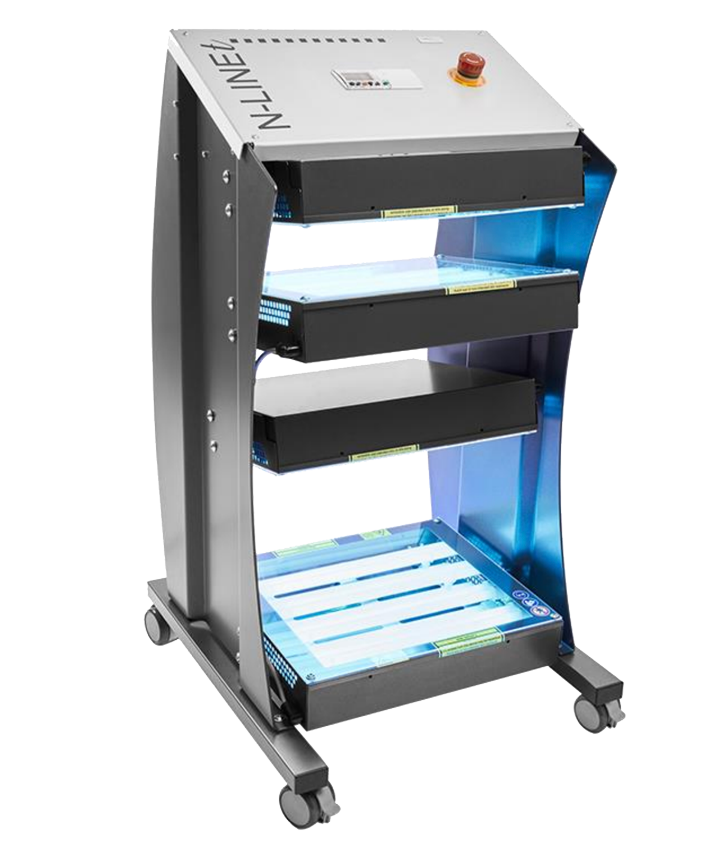

N Line Therapy Device: Specialized UV Treatment for Hands and Feet
The N Line mobile therapy device is designed specifically for the targeted treatment of hands and feet. Equipped with a UV therapy system, it provides localized treatment to the extremities, offering precise control over therapy time for each lamp group. The microcontroller ensures that the treatment is both effective and comfortable by carefully managing the UV exposure for optimal results
Why Choose N Line?
The portable design allows for easy use wherever it’s needed.
High Mobility
Customized Treatment:
Tailored UV therapy specifically for the hands and feet.
28 High-Efficiency UV Lamps
Ensures maximum therapeutic effectiveness.
Industrial-Grade Controller
Provides reliable and precise navigation for seamless operation.
Key Features
Dose Sense
Advanced sensors continuously monitor the UV output and provide real-time dosage calculations
Crystal Clear Shield
The advanced polymer protects the lamps from dirt and damage while transmitting the UV light unhindered
Targeted Treatment
Deliver effective phototherapy to the extremities and target each area with precision. Choose synchronized dosing or enter a separate dose for each module.

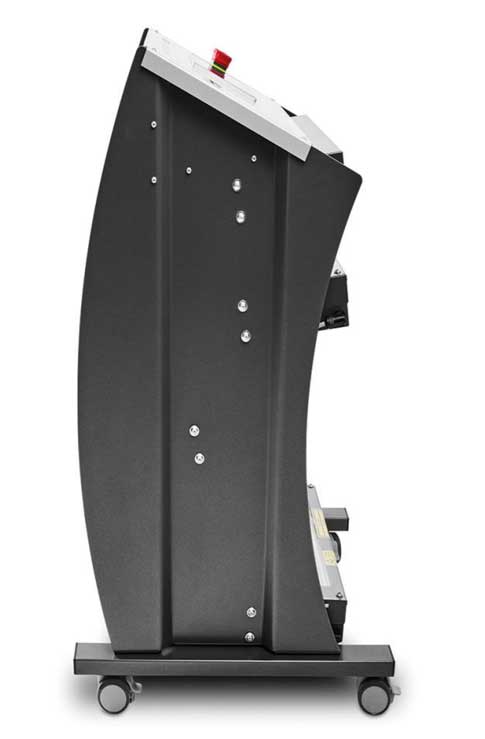

High Mobility
The compact design makes it an ideal fit for any clinic setting. The N-LINE T can be easily moved between treatment rooms thanks to the castors and safety brakes.
Ergonomic
The device is crafted with ergonomic principles in mind, ensuring that patients are positioned comfortably and with optimal back support during treatment.
Safety
Safety is the foremost priority with the N-LINE T. The enclosure minimizes UV light exposure, enhancing protection for both patients and personnel. Additionally, a physical key lock prevents unauthorized access, and a prominently visible emergency stop button allows for immediate cessation of treatment if needed.

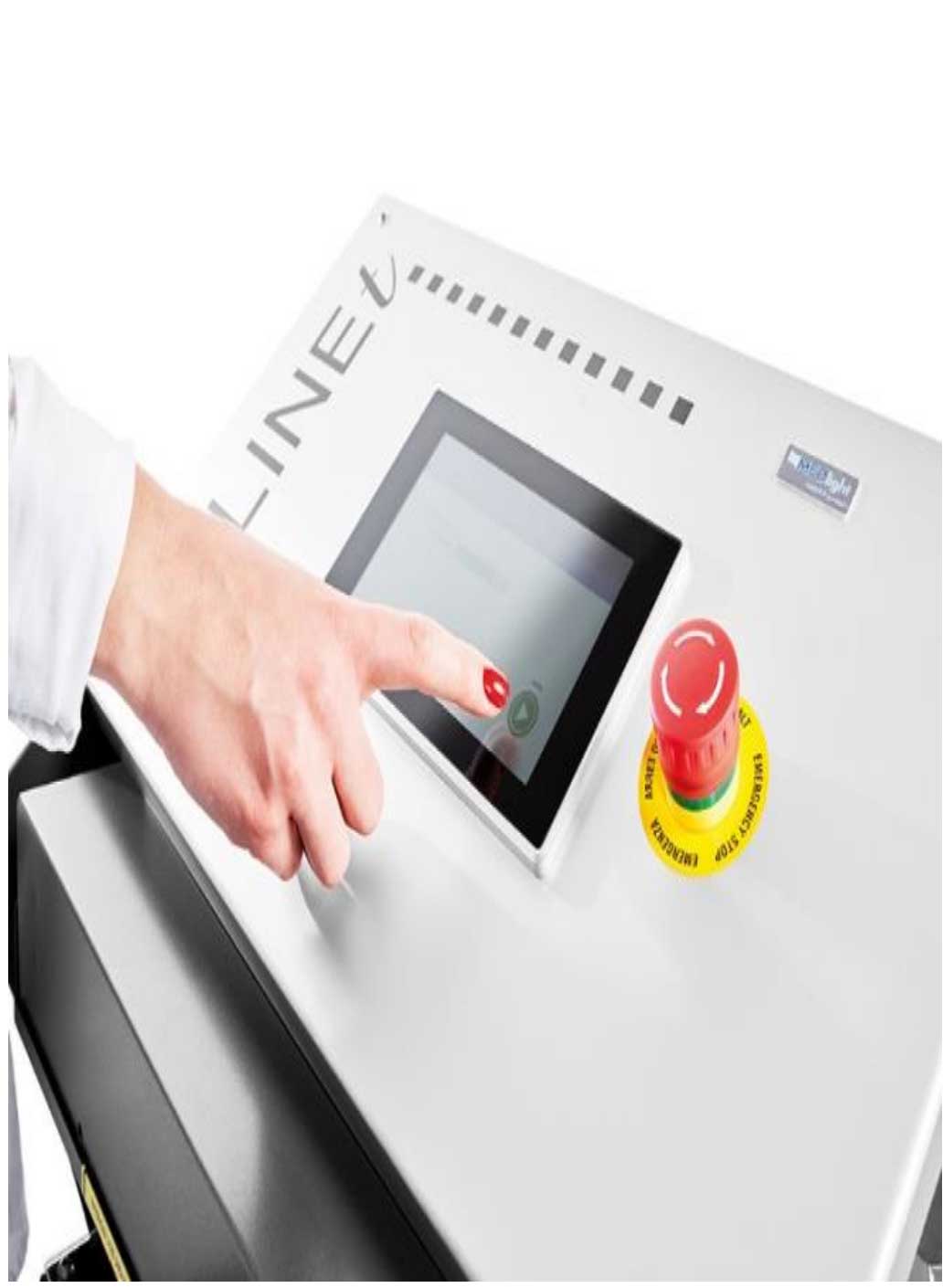

Industrial-Grade Controller
Appropriate dose limits are preset to help prevent operational errors. The NLINE T is equipped with an industrial-grade controller. You simply enter the dose and the system automatically calculates the treatment duration. The optional touchscreen intuitively guides the operator through the treatment setup.
Safety Concept
- The cabin is secure and shut off.
- Treatment is immediately paused when the door is opened.
- An emergency handle identifies patient distress, halts the treatment, and alerts the staff.
- An emergency stop button is prominently placed on the exterior for quick access.
SKINdex
Remote Control
Control of up to two separate systems
Intercom/Video
Communicate via your controlstation
Therapy Planning
Create automated treatment plans
Benefits of SKINdex:
➢ Remotely control units
➢ Personalized treatment regime
➢ Tailortherapy plans that automatically
➢ Manage and analyze digital patient records
➢ Print ortransfer reports
➢ Provide guidance and identifies errors
| Technical Details: | |
|---|---|
|
Lamps |
28 x 180 cm 100 W |
|
Brand |
Philips Lighting |
|
Spectrum |
UVA (PUVA), UVA-1, UVB-311nm (Narrowband), UVB
(Broadband) |
|
Mixed Spectrum |
It’s possible to install two different lamp types and choosebetween
the best treatment spectrum. The following combinations are
possible: UVA-1 and UVA (PUVA), UVB311nm (Narrowband) and UVB (Broadband) |
|
Voltage |
230V |
|
Frequency |
50Hz |
|
Consumption |
3200VA |
|
Height |
214cm |
|
Width |
121cm |
|
Depth |
114cm |
|
Weight |
280kg |
|
Control |
Industrial grade controller |
|
Language Support |
English, German, French, Spanish, Italian, Russian, Chinese |
|
Network |
Not Available
|
|
Remote Control |
Not Available |
|
Intercom |
Not Available |
|
Emergency Switch
|
Emergency off-switch on the outside |
|
Dosimetry |
4 x Dose Sense real-time sensors |
|
Window |
A UV-shielded privacy window allows performing a visual
check on the patient |
|
Stability Bars |
Two stability bars offer patients stability and support while
keeping them in the correct treatment position |
|
Emergency call |
Patient emergency-call handle |
